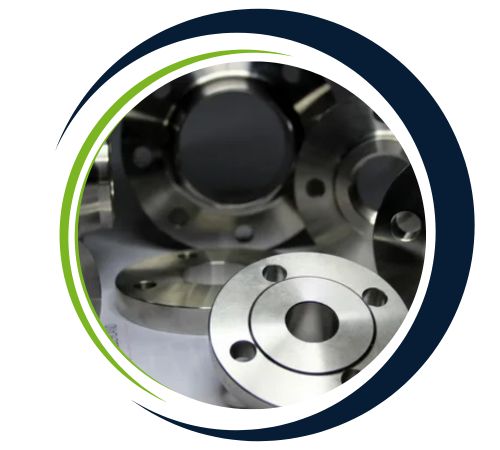

Khawla Flanges, located in Muscat, Oman, stands out as a top manufacturer and supplier of premium DIN 2576 PN10 Slip-On Flanges. With a reputation for precision engineering and strict adherence to international standards, Khawla Flanges delivers flanges that are both durable and reliable, perfect for a variety of industrial piping systems. Designed for straightforward installation and secure connections, these flanges ensure efficient operation even under moderate pressure. Catering to sectors like oil and gas, water treatment, chemical processing, and power generation, Khawla Flanges merges cutting-edge manufacturing techniques with quality assurance, promising performance, longevity, and customer satisfaction.
Typically crafted from carbon steel, stainless steel, or alloy steel, DIN 2576 PN10 Slip-On Flanges offer impressive strength, durability, and corrosion resistance. Rated for PN10 pressure, they deliver dependable performance in moderate pressure and temperature settings. Their mechanical properties include a tensile strength ranging from 400 to 550 MPa, a yield strength of 250 MPa, and an elongation of 20 to 30%, ensuring both flexibility and durability. This composition provides resistance to wear, deformation, and corrosion, making them ideal for long-term industrial use while ensuring secure, leak-proof connections in piping systems.
Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
Pipe | Flange | Bolts | Weight of one flange 7.85 kg/ dm3) kg | |||||||
NW | d1 | ds | D | b1 | k | Number | Thread | d2 | ||
10 | 14 17.2) | 14.5 17.7 | 90 | 14 | 60 | 4 | M12 | (1/2″) | 14 | 0.613 0.605 |
15 | 20 21.3) | 20.5 21.8 | 95 | 14 | 65 | 4 | M12 | (1/2″) | 14 | 0675 0.669 |
20 | 25 26.9) | 25.5 27.4 | 105 | 16 | 75 | 4 | M12 | (1/2″) | 14 | 0.947 0.936 |
25 | 30 33.7) | 30.5 34.2 | 115 | 16 | 85 | 4 | M12 | (1/2″) | 14 | 1.14 1.11 |
32 | 38 42.4) | 38.5 42.9 | 140 | 16 | 100 | 4 | M16 | (5/8″) | 18 | 1.66 1.62 |
40 | 44.5 48.3) | 45 48.8 | 150 | 16 | 110 | 4 | M16 | (5/8″) | 18 | 1.89 1.86 |
50 | 57 60.3) | 57.5 60.8 | 165 | 18 | 125 | 4 | M16 | (5/8″) | 18 | 2.51 2.47 |
65 | 76.1) | 76.6 | 185 | 18 | 145 | 4 | M16 | (5/8″) | 18 | 3.00 |
80 | 88.9) | 89.4 | 200 | 20 | 160 | 4 | M16 | (5/8″) | 18 | 3.79 |
100 | 108 114.3) | 108.5 114.8 | 220 | 20 | 180 | 8 | M16 | (5/8″) | 18 | 4.20 4.03 |
125 | 133 139.7) | 133.5 140.2 | 250 | 22 | 210 | 8 | M16 | (5/8″) | 18 | 5.71 5.46 |
150 | 159 168.3) | 159.5 168.8 | 285 | 22 | 210 | 8 | M16 | (3/4″) | 23 | 6.72 6.57 |
175 | 191 193.7) | 192 194.7 | 315 | 24 | 270 | 8 | M20 | (3/4″) | 23 | 8.60 8.45 |
200 | 216 219.1) | 216 220.1 | 340 | 24 | 295 | 8 | M20 | (3/4″) | 23 | 9.50 9.31 |
250 | 267 273) | 268 274 | 395 | 26 | 350 | 12 | M20 | (3/4″) | 23 | 12.5 11.9 |
400 | 406.4 419 | 407.4 420 | 565 | 32 | 515 | 16 | M24 | (7/8″) | 27 | 27.9 25.9 |
500 | 508) 521 | 509 522 | 670 | 38 | 620 | 20 | M24 | (7/8″) | 27 | 37.9 41.1 |
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
DIN 2576 PN10 Slip-On Flanges are extensively utilized for connecting pipes, valves, pumps, and various equipment in both industrial and commercial piping systems. They offer a secure, leak-resistant connection while simplifying alignment and installation. Commonly found in industries such as oil and gas, petrochemical, water treatment, shipbuilding, and power generation, these flanges are perfect for moderate pressure and temperature systems. They play a crucial role in maintaining efficient operations, ensuring that connections remain secure and leak-free throughout their service life.
Yes, we offer custom sizes for DIN 2576 PN10 Slip On Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
