Khawla Flanges stands out as a leading manufacturer and supplier of top-notch Incoloy 800, 800H, and 800HT Flanges in Muscat, Oman. Renowned for providing products that excel in heat resistance and structural integrity, the company serves various sectors, including petrochemicals, power generation, thermal processing, and chemical refining. With cutting-edge manufacturing capabilities and a strong commitment to international standards, Khawla Flanges guarantees reliability, durability, and precision in every item they produce. Their dedication to quality, prompt delivery, and customer satisfaction has established them as a trusted supplier throughout Oman and the broader Gulf region for high-performance nickel-alloy flange solutions.
Incoloy 800/800H/800HT Flanges are crafted from nickel–iron–chromium alloys, specifically designed to deliver outstanding strength and oxidation resistance even at elevated temperatures. Typically, their composition consists of nickel (30–35%), chromium (19–23%), with iron making up the balance, along with traces of carbon, aluminum, and titanium. The 800H and 800HT grades are enhanced with higher carbon content and controlled levels of aluminum and titanium, which boost their creep and rupture strength. Mechanically, these flanges provide excellent tensile strength, stability at high temperatures, and resistance to carburization and sulfidation. Their remarkable mechanical integrity and thermal stability make them perfect for long-term use in extreme heat environments.
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

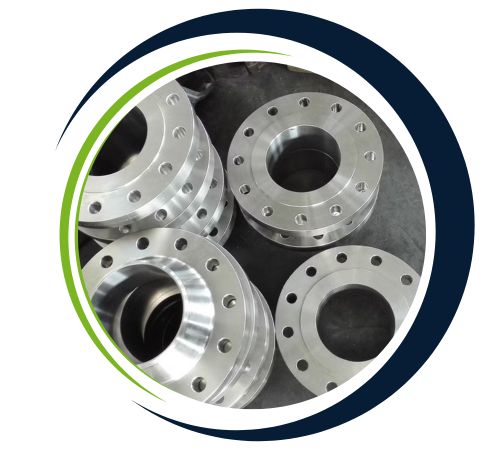

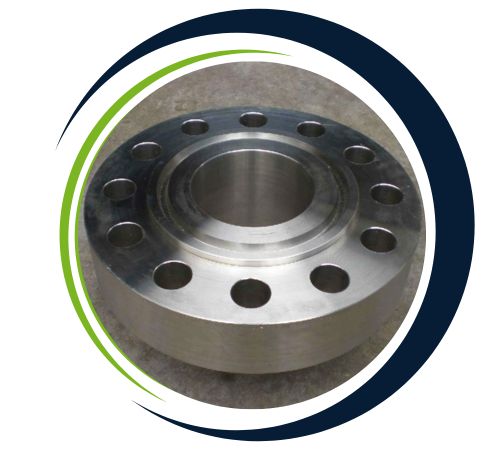

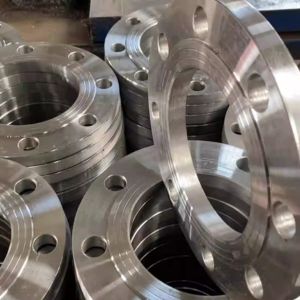

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

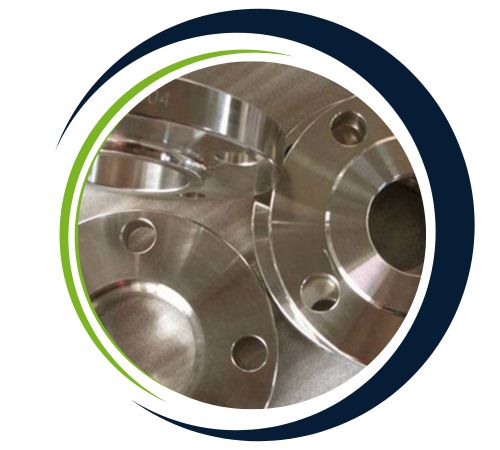

Type : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.

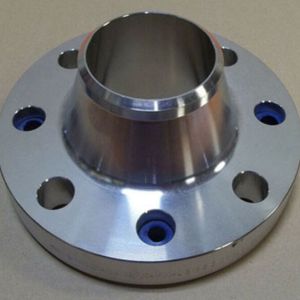

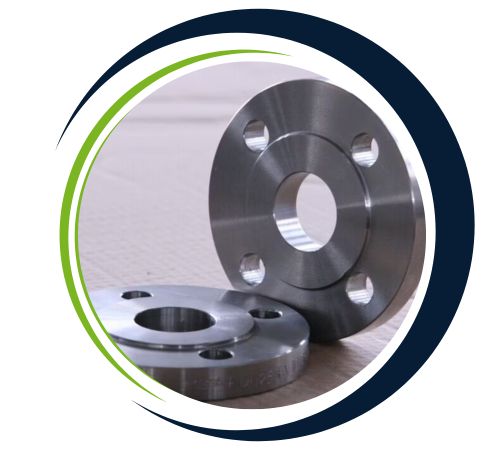

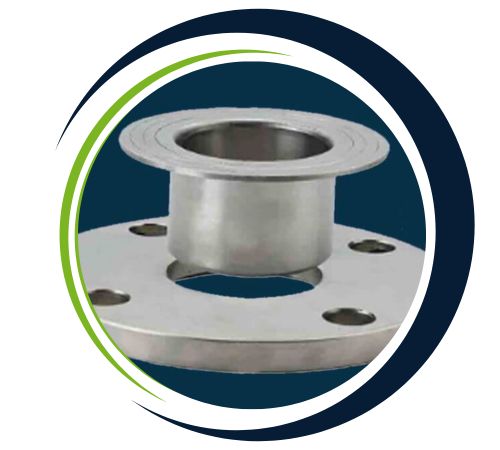

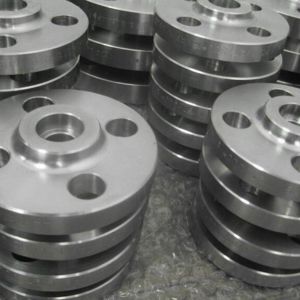

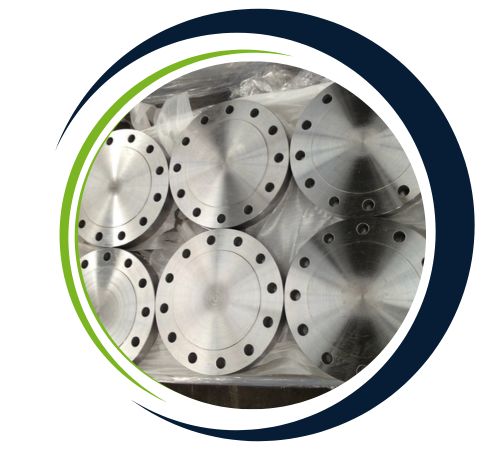

Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of Incoloy 800/800H/800HT Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30 – 35 | 19 – 23 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800/800H/800HT Flanges find extensive application in industries that function under high temperatures and corrosive conditions. They play a crucial role in petrochemical processing units, being used for heater tubes, heat exchangers, reformer systems, and high-temperature piping. Power plants depend on them for superheater and reheater systems, while the chemical sector utilizes them in reactors, furnaces, and thermal oxidizers. These flanges are also ideal for industrial heating equipment, carburizing furnaces, and steam generators. Their impressive creep strength and durability make them a reliable choice for demanding applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Yes, we offer custom sizes for Incoloy 800/800H/800HT Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
