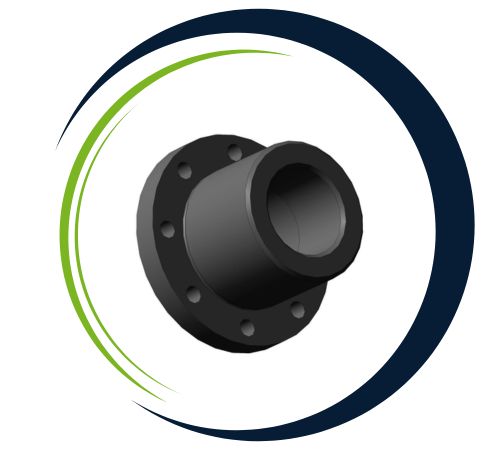

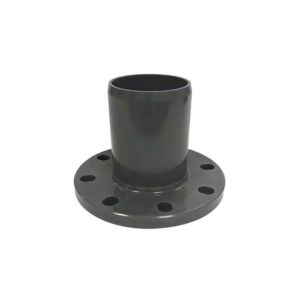

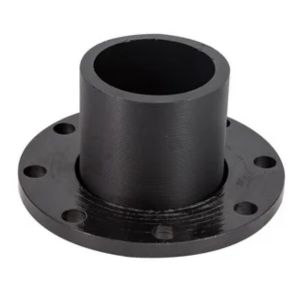

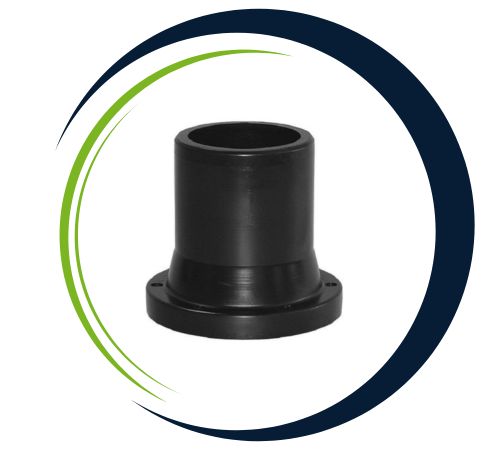

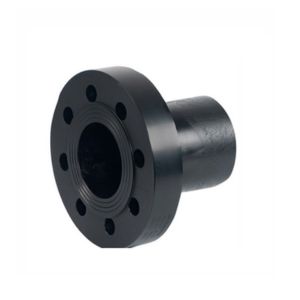

Khawla Flanges stands out as a top manufacturer and supplier located in Muscat, Oman, focusing on high-quality Carbon Steel Long Weld Neck Flanges that are perfect for high-pressure and critical piping needs. Renowned for their precision engineering and strict compliance with international standards, the company provides flanges that are not only durable but also perform exceptionally well in high-temperature and challenging industrial settings. Khawla Flanges caters to essential sectors like oil and gas, petrochemicals, power generation, and heavy industry throughout Oman and the GCC. With cutting-edge manufacturing capabilities and a dedication to quality, they deliver reliable, long-lasting Carbon Steel Long Weld Neck Flanges customized to fit various project demands.
Carbon Steel Long Weld Neck Flanges are crafted from robust carbon steel grades such as ASTM A105, A350 LF2, and A694. These materials are carefully formulated with specific amounts of carbon, manganese, silicon, and trace alloying elements to boost strength, durability, and resistance to temperature changes. The flanges provide impressive tensile and yield strength, exceptional structural integrity, and outstanding fatigue resistance, making them perfect for high-pressure applications. Their extended neck design helps distribute stress evenly, minimizing turbulence and enhancing flow characteristics. Additionally, Carbon Steel Long Weld Neck Flanges ensure reliable weldability, machinability, and long-term performance in demanding industrial conditions.
| Specification | ASTM A694 / ASME SA694 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

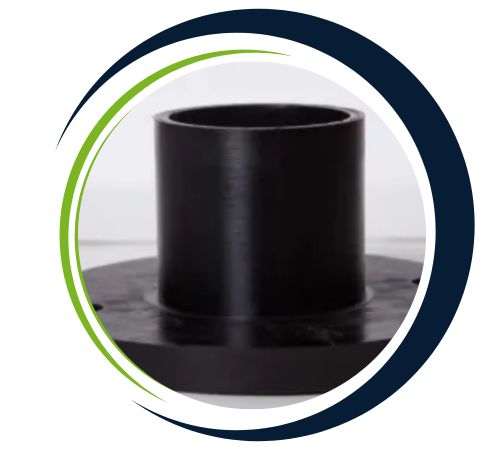

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A694 F316 Carbon Steel Flanges |
| Grades | Carbon Steel A105, LF2, IS2062, A36, F42, F52, F56, F60, F65, F70, F80 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Khawla Flanges, a premier supplier in Muscat, OMAN, specializes in high-quality Carbon Steel Long Weld Neck Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon Steel Long Weld Neck Flanges are extensively utilized in piping systems that require high pressure, high temperature, and structural reliability. Their extended neck design makes them particularly suitable for reactors, boilers, heat exchangers, pressure vessels, and heavy-duty pipelines in oil and gas processing, petrochemical facilities, and power generation plants. These flanges are also found in refineries, offshore platforms, and industrial steam lines where precise flow control and stability are crucial.

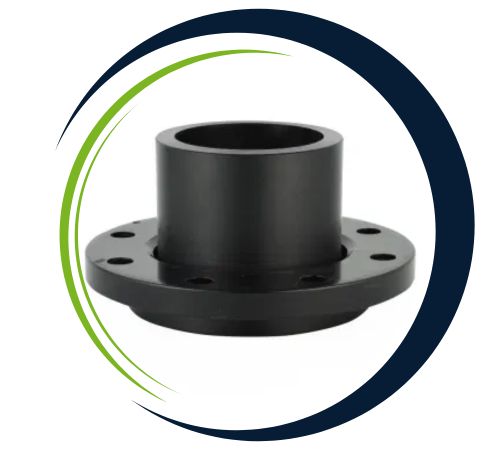

| ASME/ANSI B 16.5 | Long Weld Neck Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Long Weld Neck Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Long Weld Neck Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Carbon Steel Long Weld Neck Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
