Khawla Flanges, located in Muscat, Oman, has built a solid reputation as a reliable manufacturer and supplier of top-notch Titanium Lap Joint Flanges, specifically crafted for high-performance and corrosion-resistant piping systems. With a strong emphasis on cutting-edge engineering, precise manufacturing, and strict adherence to international quality standards, the company provides durable and dependable titanium flange solutions for critical industries. Khawla Flanges caters to sectors like oil & gas, petrochemicals, marine, chemical processing, and power generation throughout Oman and the Middle East. Their dedication to customer satisfaction, prompt delivery, and customizable product options has made them a go-to supplier for titanium flange solutions.

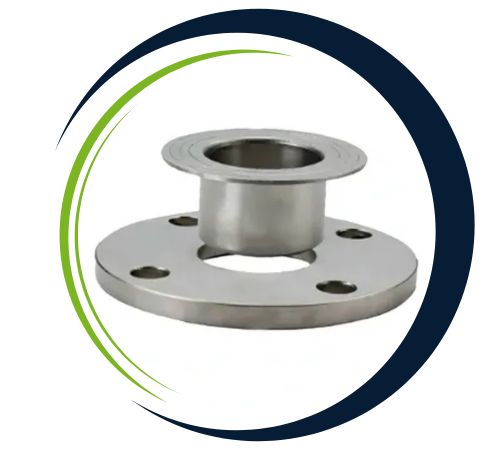

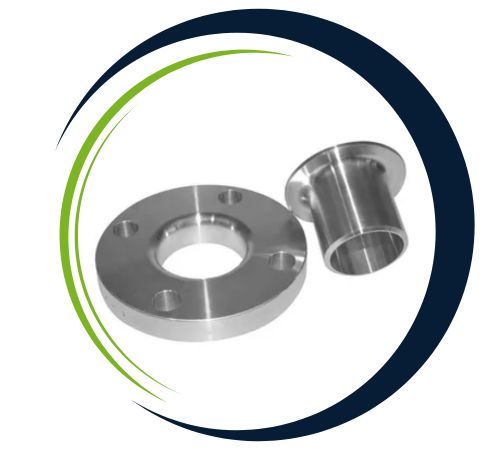

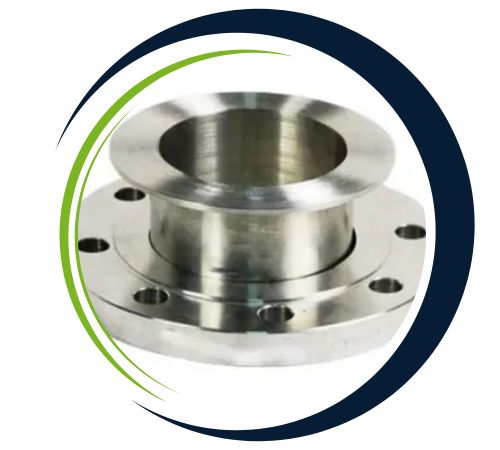

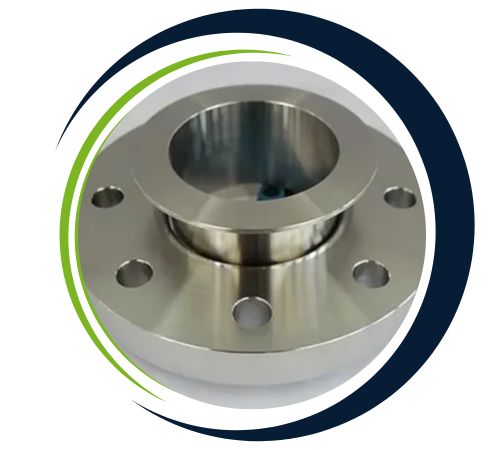

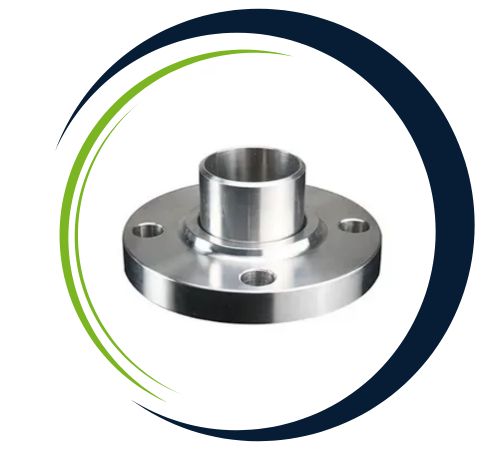

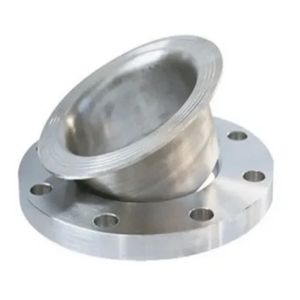

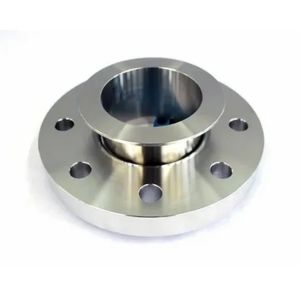

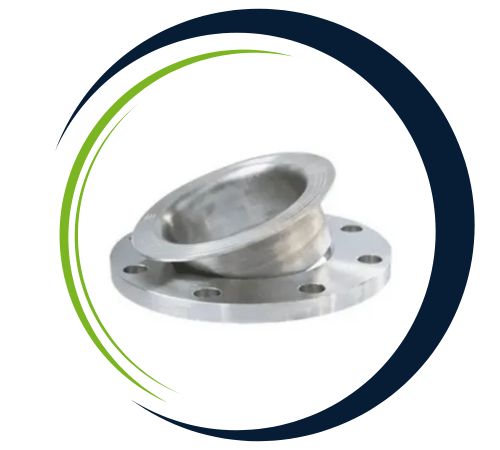

Titanium Lap Joint Flanges are generally made from titanium Grades 2 and 5 (Ti-6Al-4V), which are celebrated for their remarkable corrosion resistance and high strength. Grade 2 is known for its excellent ductility and weldability, while Grade 5, enriched with aluminum and vanadium, offers superior mechanical performance. These flanges boast high tensile and yield strength, low density, and exceptional resistance to seawater, chemicals, and high temperatures. They also maintain impressive fatigue performance and structural stability under pressure. Their lightweight yet sturdy characteristics make them perfect for challenging environments that demand long-lasting reliability and top-notch corrosion protection.
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | ||||||||||
| 1/2 | 15 | 90 | 30 | 16 | 22.9 | 60.3 | 11.2 | 3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.8 |
| 3/4 | 20 | 100 | 38 | 16 | 28.2 | 69.9 | 12.7 | 3 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
| 1 | 25 | 110 | 49 | 17 | 34.9 | 79.4 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
| 1 1/4 | 32 | 115 | 59 | 21 | 43.7 | 88.9 | 15.9 | 5 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
| 1 1/2 | 40 | 125 | 65 | 22 | 50 | 98.4 | 17.5 | 6 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.4 |
| 2 | 50 | 150 | 78 | 25 | 62.5 | 120.7 | 19.1 | 8 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
| 2 1/2 | 65 | 180 | 90 | 29 | 75.4 | 139.7 | 22.3 | 8 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 3 | 80 | 190 | 108 | 30 | 91.4 | 152.4 | 23.9 | 10 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
| 3 1/2 | 90 | 215 | 122 | 32 | 104.1 | 177.8 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5 |
| 4 | 100 | 230 | 135 | 33 | 116.8 | 190.5 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
| 5 | 125 | 255 | 164 | 36 | 144.4 | 215.9 | 23.9 | 11 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 6.8 |
| 6 | 150 | 280 | 192 | 40 | 171.4 | 241.3 | 25.4 | 13 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 8.6 |
| 8 | 200 | 345 | 246 | 44 | 222.2 | 298.5 | 28.6 | 13 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 13.7 |
| 10 | 250 | 405 | 305 | 49 | 277.4 | 362 | 30.2 | 13 | 12 | 7/8 | 100 | 115 | 1 | M24 | 19.5 |
| 12 | 300 | 485 | 365 | 56 | 328.2 | 431.8 | 31.8 | 13 | 12 | 7/8 | 100 | 120 | 1 | M24 | 29 |
| 14 | 350 | 535 | 400 | 79 | 360.2 | 476.3 | 35 | 13 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 41 |
| 16 | 400 | 595 | 457 | 87 | 411.2 | 539.8 | 36.6 | 13 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 54 |
| 18 | 450 | 635 | 505 | 97 | 462.3 | 577.9 | 39.7 | 13 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 59 |
| 20 | 500 | 700 | 559 | 103 | 514.4 | 635 | 42.9 | 13 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 75 |
| 24 | 600 | 815 | 663 | 111 | 616 | 749.3 | 47.9 | 13 | 20 | 1 1/4 | 150 | 170 | 1 3/8 |
Titanium Lap Joint Flanges find extensive use in piping systems where corrosion resistance, ease of alignment, and flexibility are crucial. They are commonly applied in marine and offshore structures, desalination systems, chemical and petrochemical plants, oil & gas processing units, and high-purity fluid lines. Their two-piece design, which works in conjunction with a stub end, allows for straightforward installation, adjustment, and repeated assembly without harming the flange. These flanges are particularly suited for low-pressure systems, areas requiring frequent maintenance, and pipelines transporting corrosive fluids.
Titanium Lap Joint Flanges find extensive use in industries that demand exceptional corrosion resistance, lightweight components, and high structural integrity. They are frequently utilized in both offshore and onshore oil and gas systems, chemical processing facilities, desalination plants, and marine engineering due to their ability to endure aggressive fluids. These flanges are also favored in aerospace, power generation, and pharmaceutical sectors where reliability and precision are paramount. Their lap joint design simplifies installation and maintenance, making them a practical choice for various applications.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Lap Joint Flange to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
