Khawla Flanges stands out as a top manufacturer and supplier of high-quality Super Duplex Steel Flanges S32750, proudly based in Muscat, Oman. They specialize in providing durable and corrosion-resistant solutions tailored for demanding industrial sectors. With state-of-the-art manufacturing facilities and a strong dedication to precision and quality, Khawla Flanges creates flanges designed to endure extreme pressures, temperatures, and harsh chemical environments. They cater to essential industries like oil and gas, petrochemical, desalination, chemical processing, and marine engineering. Their Super Duplex Steel S32750 flanges are celebrated for their exceptional strength, long service life, and dependable performance, making them a go-to choice for major projects throughout Oman and the GCC
Super Duplex Steel S32750 Flanges are crafted from a well-balanced mix of chromium, nickel, molybdenum, and nitrogen, which gives them remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy’s unique dual-phase microstructure guarantees high tensile and yield strength, excellent toughness, and outstanding fatigue resistance, even in chloride-rich environments. These flanges maintain their structural integrity under high temperatures and pressures. Their enhanced hardness and corrosion resistance make them perfect for tough industrial settings, while their precise dimensions ensure reliable performance in high-integrity piping systems.
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size : 1/8″ NB TO 24″ NB
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

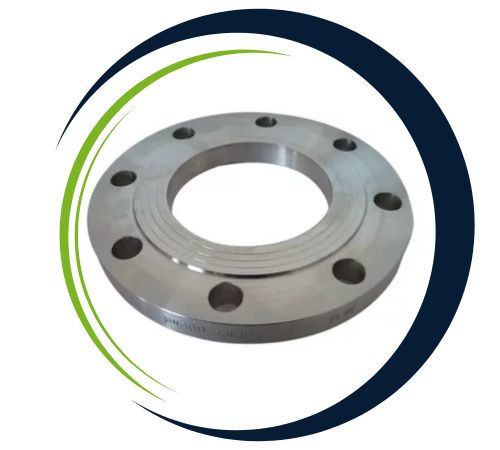

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades : S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61

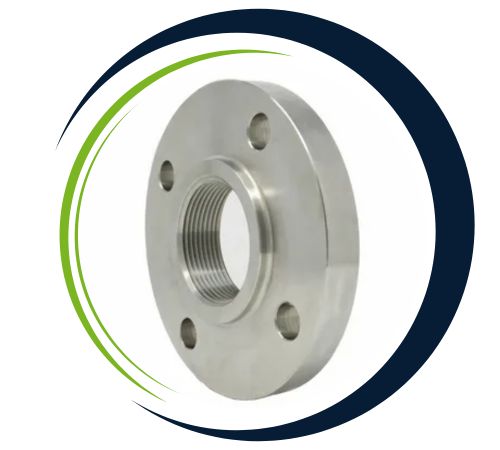

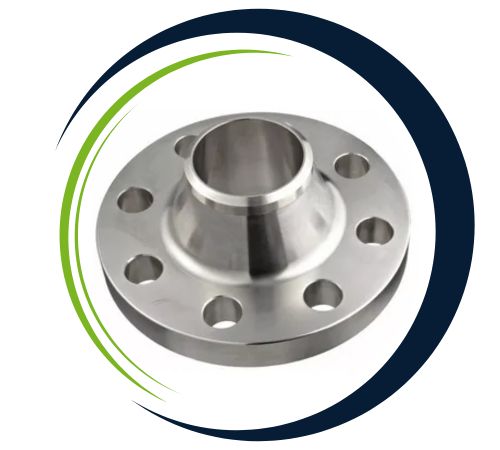

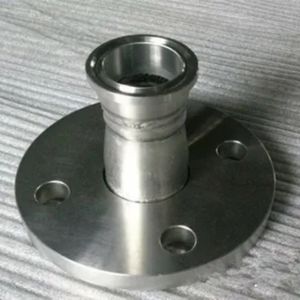

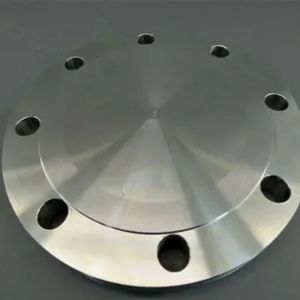

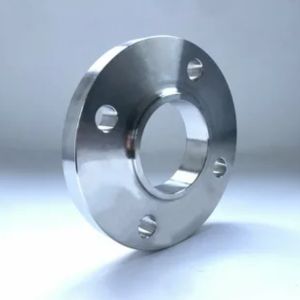

Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of Super Duplex Steel S32750 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
Super Duplex Steel Flanges S32750 find their place in industries that face extreme conditions and corrosive environments. They are frequently used in both offshore and onshore oil and gas platforms, petrochemical plants, desalination units, chemical processing facilities, and marine engineering systems. Their remarkable resistance to seawater, brine, and aggressive chemicals makes them ideal for high-salinity applications and seawater cooling systems. Additionally, these flanges are utilized in heat exchangers, ensuring efficiency and reliability in various demanding applications.
| Nom. Pipe Size | O | T | R | X | No./Dia. of Holes | Bolt Circle Dia. | L2 | H | B2 | L | B | r | L3 | B3 | D |
| 1/2 | 3.5 | 0.44 | 1.38 | 1.19 | 4-0.62 | 2.38 | 1.88 | 0.84 | 0.62 | 0.62 | 0.88 | 0.12 | 0.62 | 0.9 | 0.38 |
| 3/4 | 3.88 | 0.5 | 1.69 | 1.5 | 4-0.62 | 2.75 | 2.06 | 1.05 | 0.82 | 0.62 | 1.09 | 0.12 | 0.62 | 1.11 | 0.44 |
| 1 | 4.25 | 0.56 | 2 | 1.94 | 4-0.62 | 3.12 | 2.19 | 1.32 | 1.05 | 0.69 | 1.36 | 0.12 | 0.69 | 1.38 | 0.5 |
| 1-1/4 | 4.62 | 0.62 | 2.5 | 2.31 | 4-0.62 | 3.5 | 2.25 | 1.66 | 1.38 | 0.81 | 1.7 | 0.19 | 0.81 | 1.72 | 0.56 |
| 1-1/2 | 5 | 0.68 | 2.88 | 2.56 | 4-0.62 | 3.88 | 2.44 | 1.9 | 1.61 | 0.88 | 1.95 | 0.25 | 0.88 | 1.97 | 0.62 |
| 2 | 6 | 0.75 | 3.62 | 3.06 | 4-0.75 | 4.75 | 2.5 | 2.38 | 2.07 | 1 | 2.44 | 0.31 | 1 | 2.46 | 0.69 |
| 2-1/2 | 7 | 0.88 | 4.12 | 3.56 | 4-0.75 | 5.5 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | 0.31 | 1.12 | 2.97 | 0.75 |
| 3 | 7.5 | 0.94 | 5 | 4.25 | 4-0.75 | 6 | 2.75 | 3.5 | 3.07 | 1.19 | 3.57 | 0.38 | 1.19 | 3.6 | 0.81 |
| 3-1/2 | 8.5 | 0.94 | 5.5 | 4.81 | 8-0.75 | 7 | 2.81 | 4 | 3.55 | 1.25 | 4.07 | 0.38 | 1.25 | 4.1 | 0.88 |
| 4 | 9 | 0.94 | 6.19 | 5.31 | 8-0.75 | 7.5 | 3 | 4.5 | 4.03 | 1.31 | 4.57 | 0.44 | 1.31 | 4.6 | 0.94 |
| 5 | 10 | 0.94 | 7.31 | 6.44 | 8-0.88 | 8.5 | 3.5 | 5.56 | 5.05 | 1.44 | 5.66 | 0.44 | 1.44 | 5.69 | 0.94 |
| 6 | 11 | 1 | 8.5 | 7.56 | 8-0.88 | 9.5 | 3.5 | 6.63 | 6.07 | 1.56 | 6.72 | 0.5 | 1.56 | 6.75 | 1.06 |
| 8 | 13.5 | 1.12 | 10.62 | 9.69 | 8-0.88 | 11.75 | 4 | 8.63 | 7.98 | 1.75 | 8.72 | 0.5 | 1.75 | 8.75 | 1.25 |
| 10 | 16 | 1.19 | 12.75 | 12 | 12-1.00 | 14.25 | 4 | 10.75 | 10.02 | 1.94 | 10.88 | 0.5 | 1.94 | 10.92 | 1.31 |
| 12 | 19 | 1.25 | 15 | 14.38 | 12-1.00 | 17 | 4.5 | 12.75 | 12 | 2.19 | 12.88 | 0.5 | 2.19 | 12.92 | 1.56 |
| 14 | 21 | 1.38 | 16.25 | 15.75 | 12-1.12 | 18.75 | 5 | 14 | 13.25 | 2.25 | 14.14 | 0.5 | 3.12 | 14.18 | 1.63 |
| 16 | 23.5 | 1.44 | 18.5 | 18 | 16-1.12 | 21.25 | 5 | 16 | 15.25 | 2.5 | 16.16 | 0.5 | 3.44 | 16.19 | 1.75 |
| 18 | 25 | 1.56 | 21 | 19.88 | 16-1.25 | 22.75 | 5.5 | 18 | 17.25 | 2.69 | 18.18 | 0.5 | 3.81 | 18.2 | 1.94 |
| 20 | 27.5 | 1.69 | 23 | 22 | 20-1.25 | 25 | 5.69 | 20 | 19.25 | 2.88 | 20.2 | 0.5 | 4.06 | 20.25 | 2.13 |
| 22 | 29.5 | 1.81 | 25.25 | 24.25 | 20-1.38 | 27.25 | 5.88 | 22 | 21.25 | 3.13 | 22.22 | 0.5 | 4.25 | 22.25 | 2.38 |
| 24 | 32 | 1.88 | 27.25 | 26.12 | 20-1.38 | 29.5 | 6 | 24 | 23.25 | 3.25 | 24.25 | 0.5 | 4.38 | 24.25 | 2.5 |
Yes, we offer custom sizes for Super Duplex Steel S32750 Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
