Khawla Flanges, based in Muscat, Oman, stands out as a top manufacturer and supplier of high-quality **Hot Dipped Galvanized Flanges** that are built to endure tough industrial conditions. Known for their reliability and precision engineering, the company ensures that their flanges meet global standards, providing long-lasting protection against corrosion and wear from the environment. By employing advanced galvanizing techniques and strict quality control, Khawla Flanges serves vital sectors like oil & gas, water treatment, construction, marine, and power generation. Their Hot Dipped Galvanized Flanges guarantee durability, superior surface protection, and consistent performance in challenging, moisture-rich outdoor settings.
**Hot Dipped Galvanized Flanges** are generally crafted from carbon steel or mild steel grades that include iron, carbon, manganese, and a few trace elements. They undergo a hot-dip galvanizing process, resulting in a thick zinc coating that offers outstanding resistance to corrosion and rust, significantly prolonging their service life. The steel beneath provides high tensile and yield strength, while the galvanized layer boosts impact resistance and shields against abrasion. These flanges maintain their structural integrity even in harsh, humid, and chemically aggressive environments, ensuring dependable performance across various industrial applications.
| Specification | Galvanized Flanges |
|---|---|
| Order Quantity | 30 Piece |
| Size | >30 inch |
| Forging Methods | Casting/ Forging/ Rolling/ Cutting |
| Production Technique | Forged/ Heat treated and machined |
| Brand | Vishal Steel |
| Flange Type | Slip On/ Blind/ Weld Neck/ Threaded |
| Color | galvanised |
| Shape | round |
| Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Finish | coated |
| Rated Pressure | as per requirement |
| Surface Finish | as per requirement |
| Diameter | depends on size |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Application | Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Composition | Content |
|---|---|
| Sulfur, S | ≤ 0.050 % |
| Iron, Fe | 98.81 – 99.26 % (as remainder) |
| Carbon, C | 0.14 – 0.20 % |
| Manganese, Mn | 0.60 – 0.90 % |
| Phosphorous, P | ≤ 0.040 % |

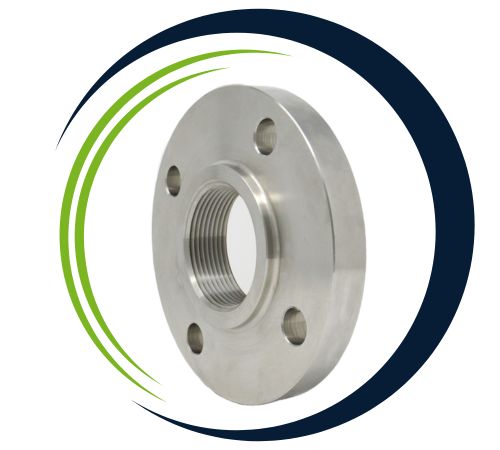

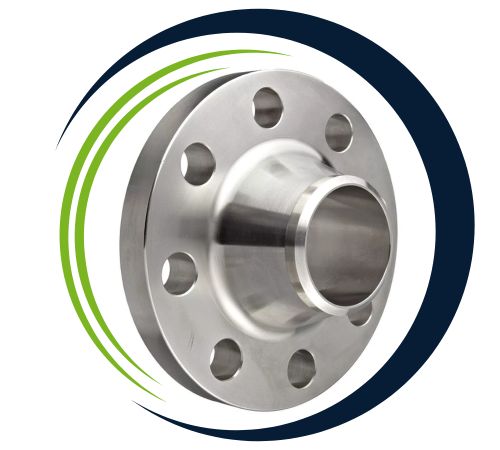

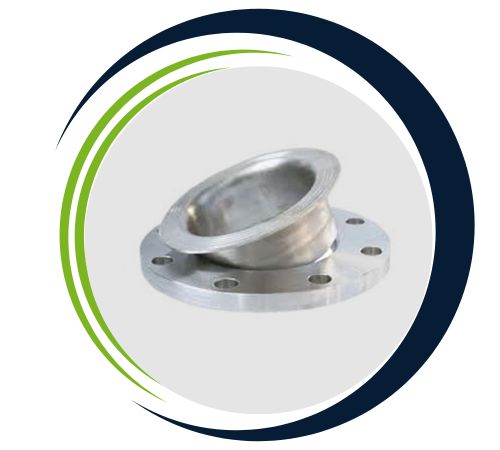

Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of Hot dipped Galvanized Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
**Hot Dipped Galvanized Flanges** find extensive use in industries where durability and corrosion resistance are crucial. They’re perfect for water supply systems, wastewater pipelines, outdoor structural piping, fire-fighting networks, HVAC systems, and agricultural irrigation setups. In sectors like oil & gas, marine, and construction, these flanges create reliable, rust-resistant connections that can handle moisture, salinity, and environmental challenges. Thanks to their robust zinc coating, they are well-suited for applications that demand resilience and longevity, making them a go-to choice for professionals in the field.
| Normal Size Of Steel Pipe in Inch | NPS (Normal Pipe Size) Size in Millimeter | O.D. | Wall Thickness | Hub Outer Diameter | Weld Neck Outer Diameter | ASME B16.5 WNRF Length | WNRF Bore Daimeter | Raised Face Diameter | Height Of Raised Face | PCD | Face Of WNRF |
| (A) | (B) | (C) | (D) | (E) | (F) | (G) | (H) | (I) | (J) | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | – | 34.9 | 2 | 60.3 | 1.6 |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | 42.9 | 2 | 69.9 | 1.6 | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 50.8 | 2 | 79.4 | 1.6 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 63.5 | 2 | 88.9 | 1.6 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 73 | 2 | 98.4 | 1.6 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 92.1 | 2 | 120.7 | 1.6 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 104.8 | 2 | 139.7 | 1.6 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 127 | 2 | 152.4 | 1.6 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 139.7 | 2 | 177.8 | 1.6 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 157.2 | 2 | 190.5 | 1.6 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 185.7 | 2 | 215.9 | 1.6 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 215.9 | 2 | 241.3 | 1.6 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 269.9 | 2 | 298.5 | 1.6 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 323.8 | 2 | 362 | 1.6 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 381 | 2 | 431.8 | 1.6 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 412.8 | 2 | 476.3 | 1.6 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 469.9 | 2 | 539.8 | 1.6 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 533.4 | 2 | 577.9 | 1.6 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 584.2 | 2 | 635 | 1.6 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 692.2 | 2 | 749.3 | 1.6 |
| Size | Specification |
|---|---|
| 3/4″ Pipe | 3-1/4″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Black Floor Pipe Flange |
| 1-1/2″ Pipe | 4-1/2″ OD, 7/8″ Hub Length, Black Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Black Floor Pipe Flange |
| 1/2″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1-1/4″ Pipe | 4″ OD, 13/16″ Hub Length, Black Floor Pipe Flange |
| 3/4″ Pipe | 3-1/2″ OD, 5/8″ Hub Length, Galvanized Floor Pipe Flange |
| 1/4″ Pipe | 2-3/16″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 3/8″ Pipe | 3″ OD, 5/8″ Hub Length, Black Floor Pipe Flange |
| 2″ Pipe | 5-1/2″ OD, 1″ Hub Length, Galvanized Floor Pipe Flange |
| 1″ Pipe | 4″ OD, 11/16″ Hub Length, Galvanized Floor Pipe Flange |
| Normal Pipe Size | Dimensions | Weight (Kilogram) | ||||
|---|---|---|---|---|---|---|
| Normal Pipe Size (Inch) | DN (mm) | Flanges In Millimeter | Flanges In Wall Thickness | Slip On | Weld Neck | Blind |
| 1/2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for Hot dipped Galvanized Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
