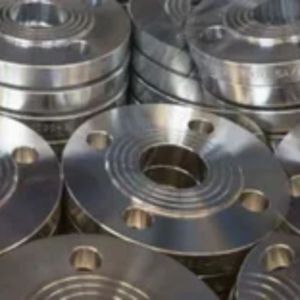

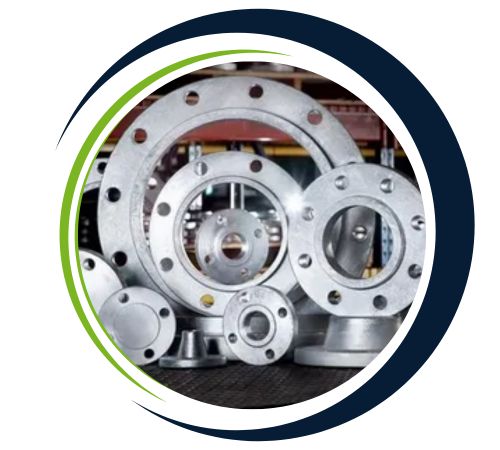

Khawla Flanges, based in Muscat, Oman, is a well-respected manufacturer and supplier of top-notch ASME B16.5 flanges that meet international standards for piping components. The company excels in creating a variety of flange types, such as weld neck, slip-on, blind, threaded, and socket weld flanges, all designed for dependable performance in a range of industrial settings. With state-of-the-art manufacturing facilities, rigorous quality control, and a dedication to precision, Khawla Flanges caters to crucial sectors like oil and gas, petrochemicals, power generation, and water treatment. Their ASME B16.5 flanges are known for their durability, accuracy, and seamless integration into systems.
ASME B16.5 flanges are crafted from a selection of materials, including carbon steel, stainless steel, alloy steel, and duplex grades, chosen based on the specific needs of each application. Their composition usually features elements like chromium, molybdenum, nickel, and carbon, which contribute to their corrosion resistance, strength, and thermal stability. These flanges boast impressive tensile and yield strength, impact resistance, and the capability to endure high pressures and temperatures. Their precise dimensions ensure secure connections, while their excellent weldability and toughness make them ideal for challenging operating conditions across various industries.
Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of ASME B16.5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Nominal Size | Outside Diameter (OD) | Min. Thickness (T) | RF Dia. (R) | No. of Bolt Holes | Diameter of Holes | Bolt Circle (BC) | SO Bore ID (SB) | Dia. Hub Base (HB) | Dia. Hub Top (HT) | SO LTH (SL) | WN LTH (WL) | * WN Bore ID (WB) |
| 1⁄2 | 3.75 | 0.56 | 1.38 | 4 | 0.63 | 2.62 | 0.88 | 1.50 | 0.84 | 0.88 | 2.06 | * |
| 3⁄4 | 4.62 | 0.62 | 1.69 | 4 | 0.75 | 3.25 | 1.09 | 1.88 | 1.05 | 1.00 | 2.25 | * |
| 1 | 4.88 | 0.69 | 2.00 | 4 | 0.75 | 3.50 | 1.36 | 2.12 | 1.32 | 1.06 | 2.44 | * |
| 11⁄4 | 5.25 | 0.81 | 2.50 | 4 | 0.75 | 3.88 | 1.70 | 2.50 | 1.66 | 1.12 | 2.62 | * |
| 11⁄2 | 6.12 | 0.88 | 2.88 | 4 | 0.88 | 4.50 | 1.95 | 2.75 | 1.90 | 1.25 | 2.75 | * |
| 2 | 6.50 | 1.00 | 3.62 | 8 | 0.75 | 5.00 | 2.44 | 3.31 | 2.38 | 1.44 | 2.88 | * |
| 21⁄2 | 7.50 | 1.12 | 4.12 | 8 | 0.88 | 5.88 | 2.94 | 3.94 | 2.88 | 1.62 | 3.12 | * |
| 3 | 8.25 | 1.25 | 5.00 | 8 | 0.88 | 6.62 | 3.57 | 4.62 | 3.50 | 1.81 | 3.25 | * |
| 31⁄2 | 9.00 | 1.38 | 5.50 | 8 | 1.00 | 7.25 | 4.07 | 5.25 | 4.00 | 1.94 | 3.38 | * |
| 4 | 10.75 | 1.50 | 6.19 | 8 | 1.00 | 8.50 | 4.57 | 6.00 | 4.50 | 2.12 | 4.00 | * |
| 5 | 13.00 | 1.75 | 7.31 | 8 | 1.12 | 10.50 | 5.66 | 7.44 | 5.56 | 2.38 | 4.50 | * |
| 6 | 14.00 | 1.88 | 8.50 | 12 | 1.12 | 11.50 | 6.72 | 8.75 | 6.63 | 2.62 | 4.62 | * |
| 8 | 16.50 | 2.19 | 10.62 | 12 | 1.25 | 13.75 | 8.72 | 10.75 | 8.63 | 3.00 | 5.25 | * |
| 10 | 20.00 | 2.50 | 12.75 | 16 | 1.38 | 17.00 | 10.88 | 13.50 | 10.75 | 3.38 | 6.00 | * |
| 12 | 22.00 | 2.62 | 15.00 | 20 | 1.38 | 19.25 | 12.88 | 15.75 | 12.75 | 3.62 | 6.12 | * |
| 14 | 23.75 | 2.75 | 16.25 | 20 | 1.50 | 20.75 | 14.14 | 17.00 | 14.00 | 3.69 | 6.50 | * |
| 16 | 27.00 | 3.00 | 18.50 | 20 | 1.63 | 23.75 | 16.16 | 19.50 | 16.00 | 4.19 | 7.00 | * |
| 18 | 29.25 | 3.25 | 21.00 | 20 | 1.75 | 25.75 | 18.18 | 21.50 | 18.00 | 4.62 | 7.25 | * |
| 20 | 32.00 | 3.50 | 23.00 | 24 | 1.75 | 28.50 | 20.20 | 24.00 | 20.00 | 5.00 | 7.50 | * |
| 22 | 34.25 | 3.75 | 25.25 | 24 | 1.88 | 30.63 | 22.22 | 26.25 | 22.00 | 5.25 | 7.75 | * |
| 24 | 37.00 | 4.00 | 27.25 | 24 | 2.00 | 33.00 | 24.25 | 28.25 | 24.00 | 5.50 | 8.00 | * |
ASME B16.5 flanges find extensive use in industries that demand safe, efficient, and standardized piping connections. They are crucial in oil and gas pipelines, chemical processing facilities, refineries, power plants, and water distribution systems. These flanges are key for connecting pipes, valves, pumps, and equipment, facilitating easy assembly, disassembly, inspection, and maintenance. Depending on the type—like weld neck or blind—they can handle different pressure classes and temperature ranges. Their reliability, versatility, and adherence to standards make them indispensable in many applications.
Yes, we offer custom sizes for ASME B16.5 Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
